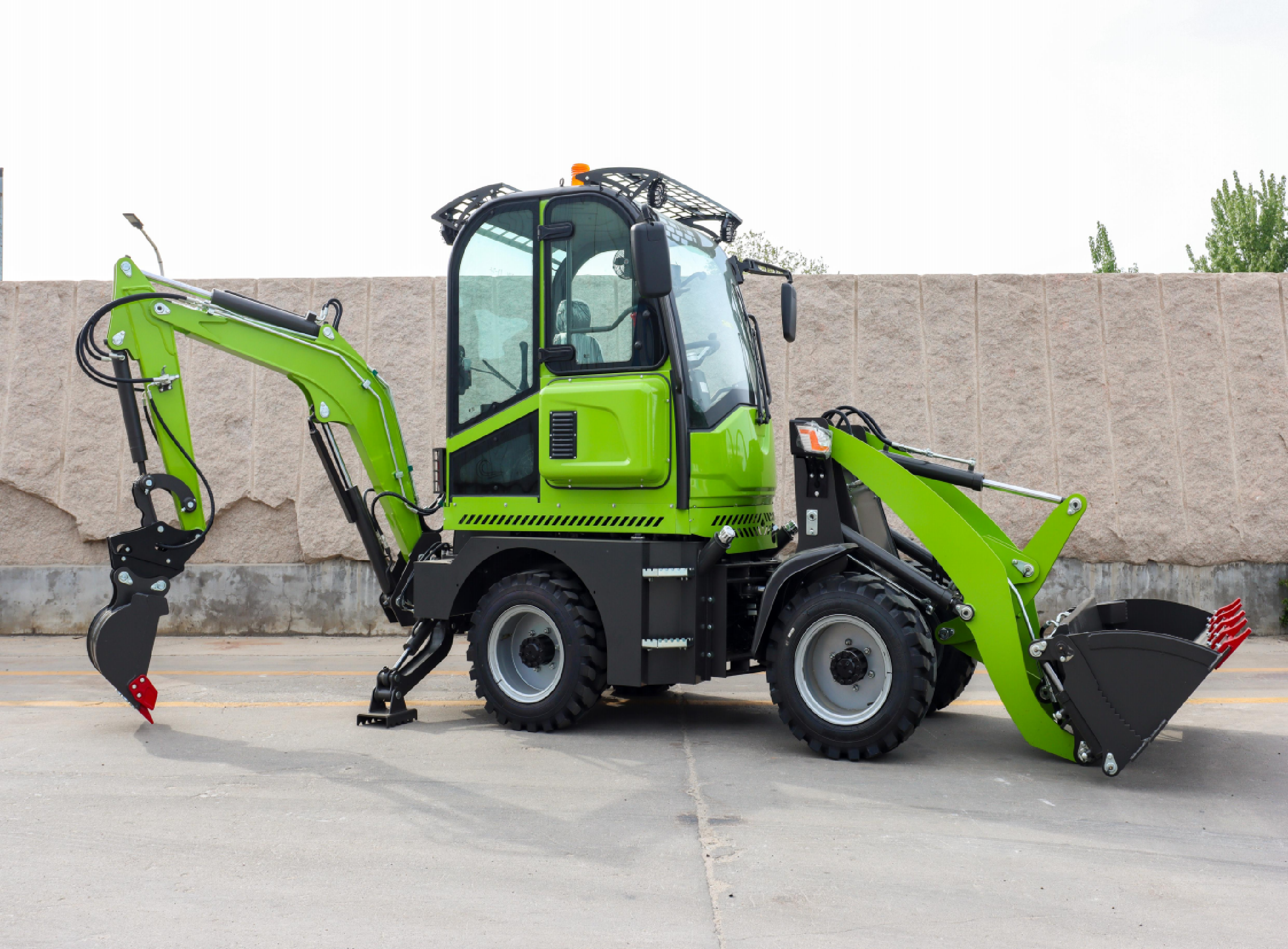

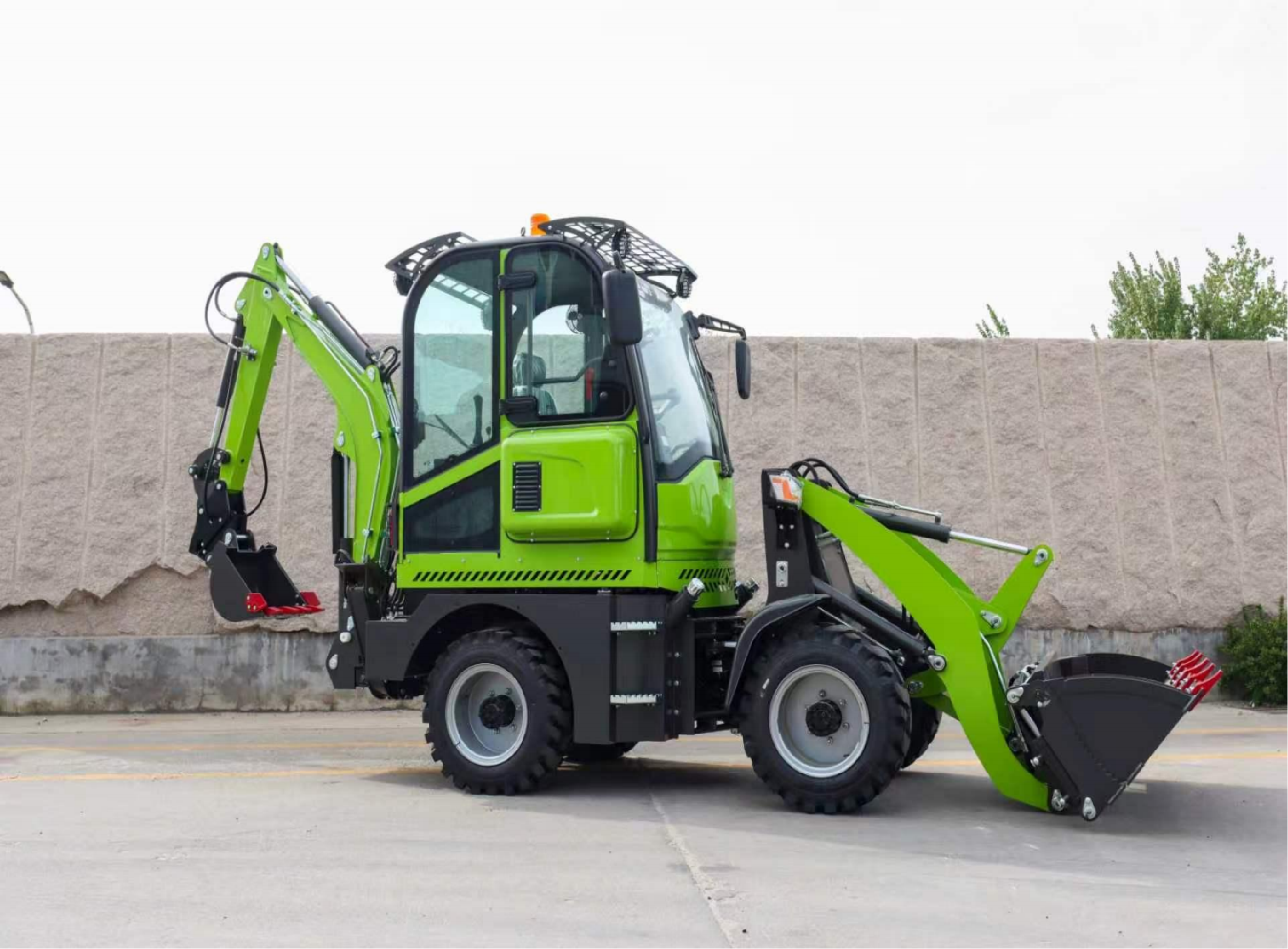

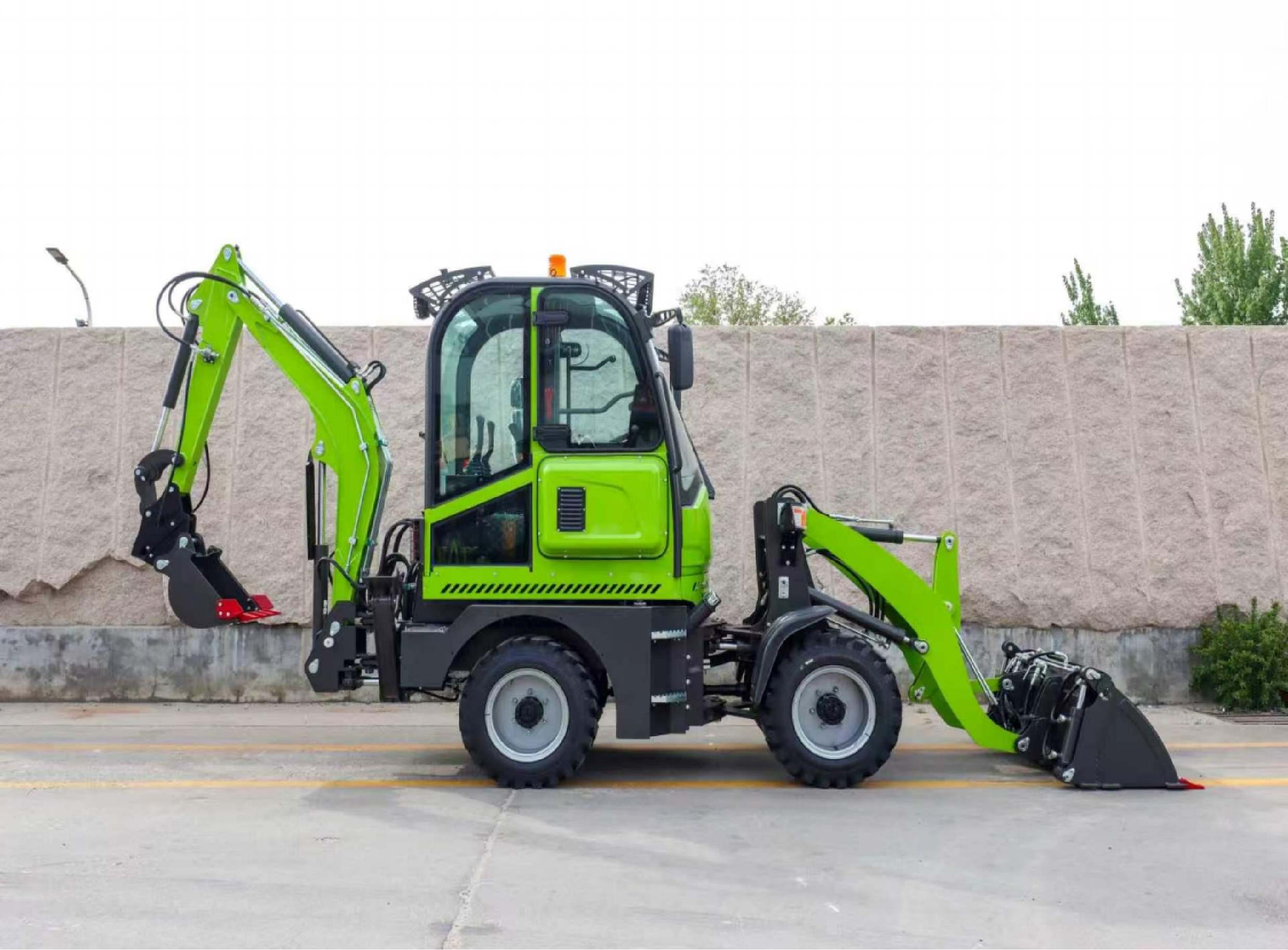

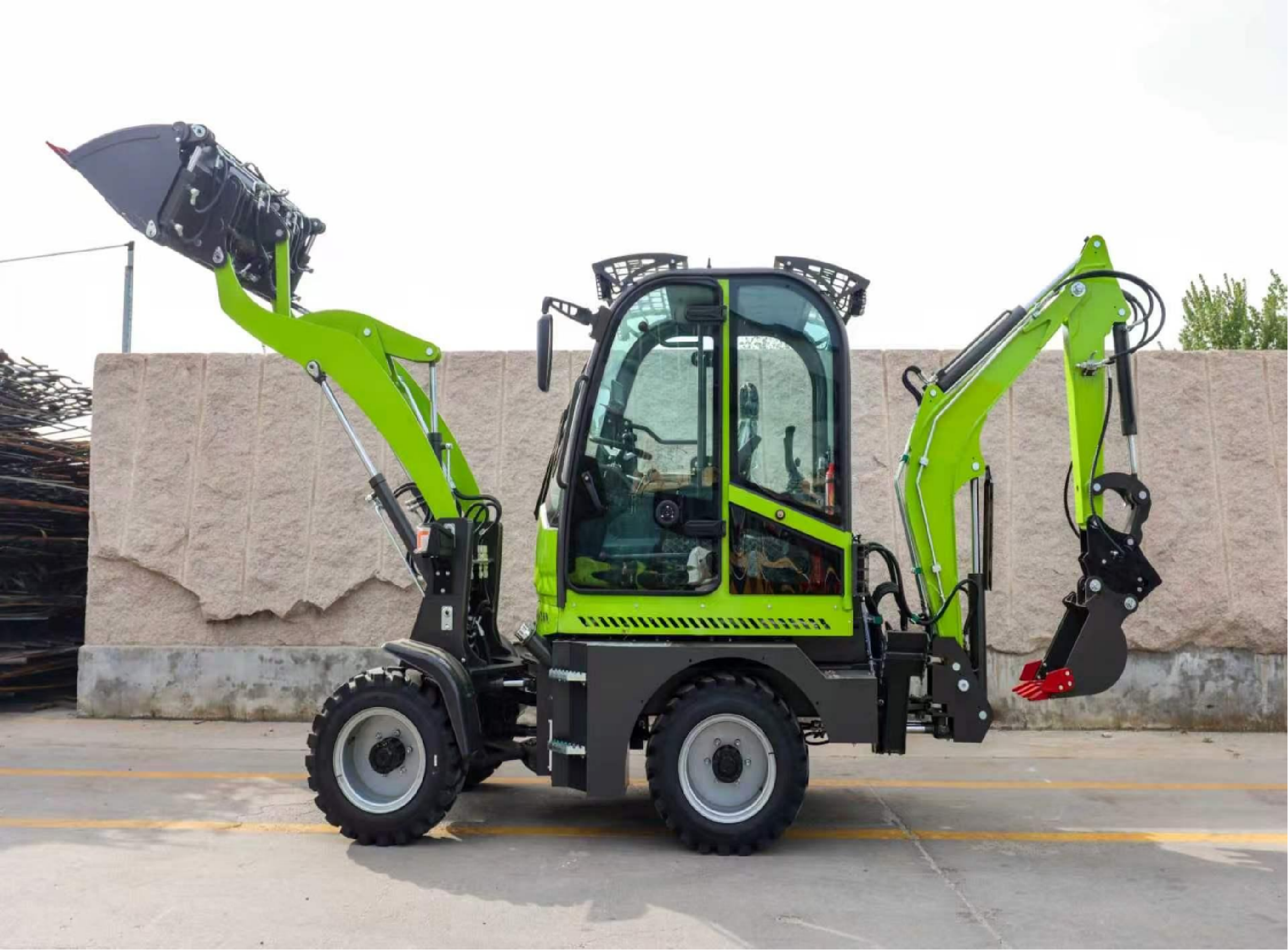

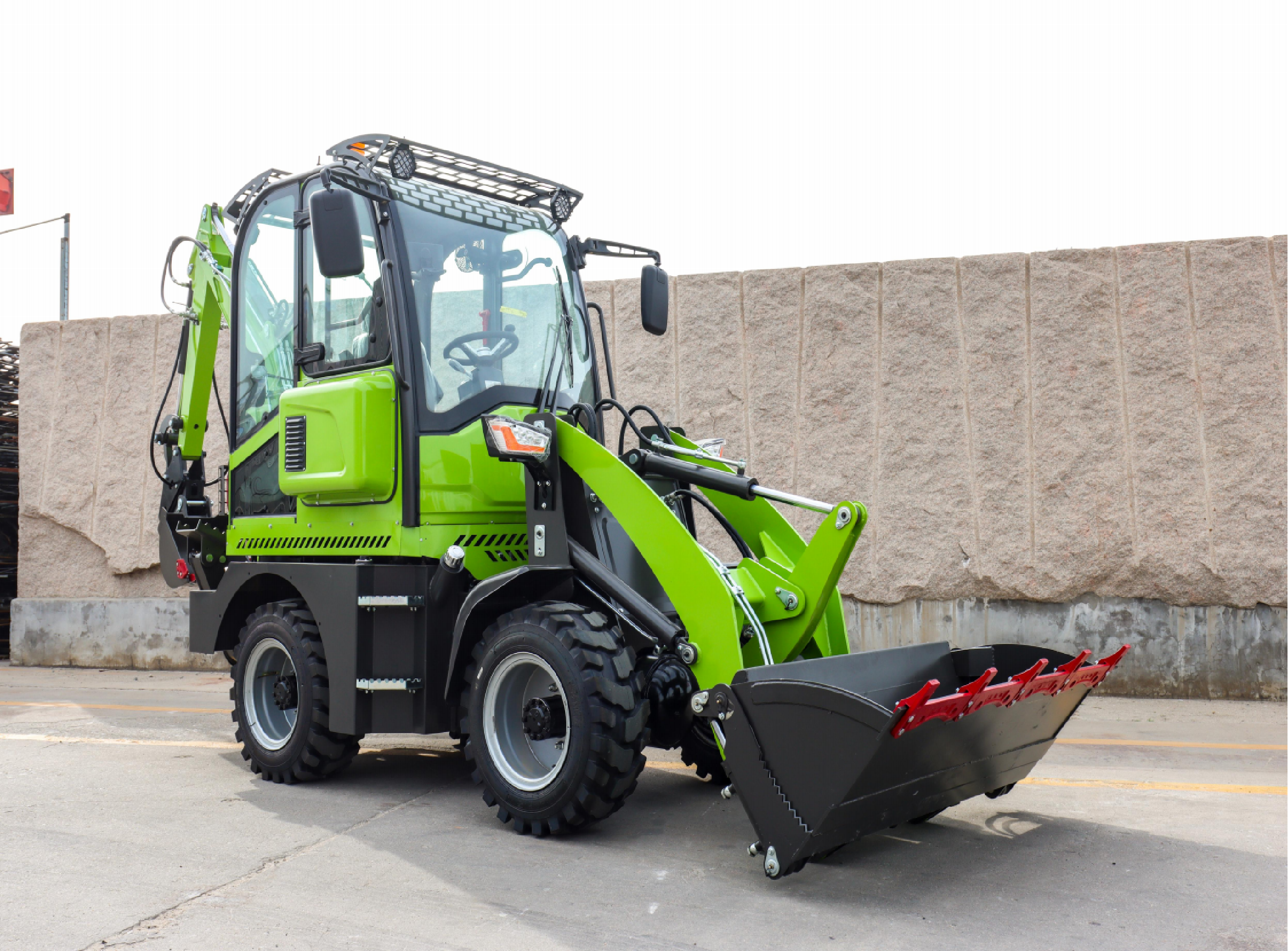

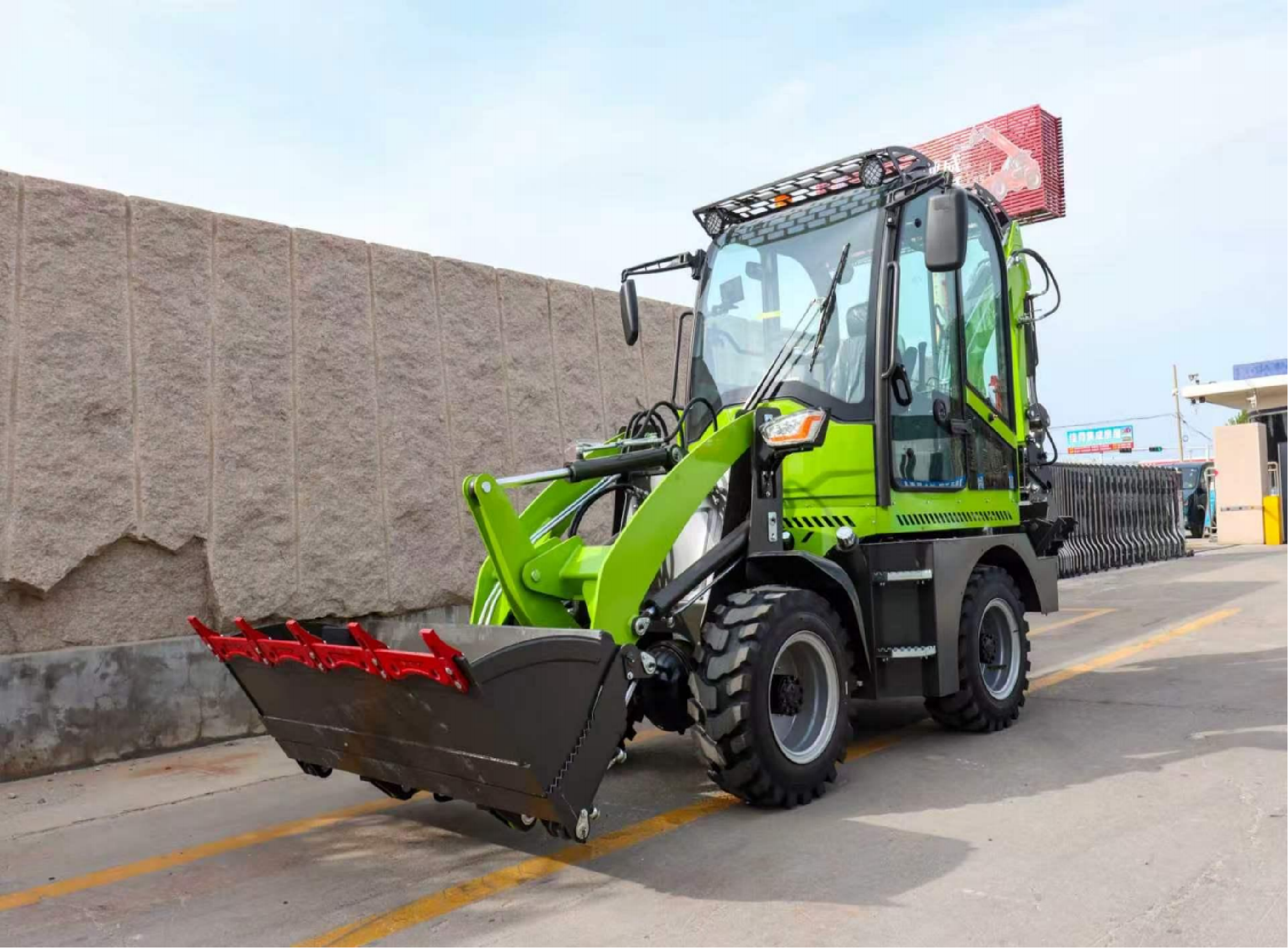

WL20 Compact Backhoe Loader
一、Core Key Technical Parameters 核心关键参数
Basic Machine Parameters 整机基础参数
- Operating Weight: 2800kg | 整机重量：2800 公斤

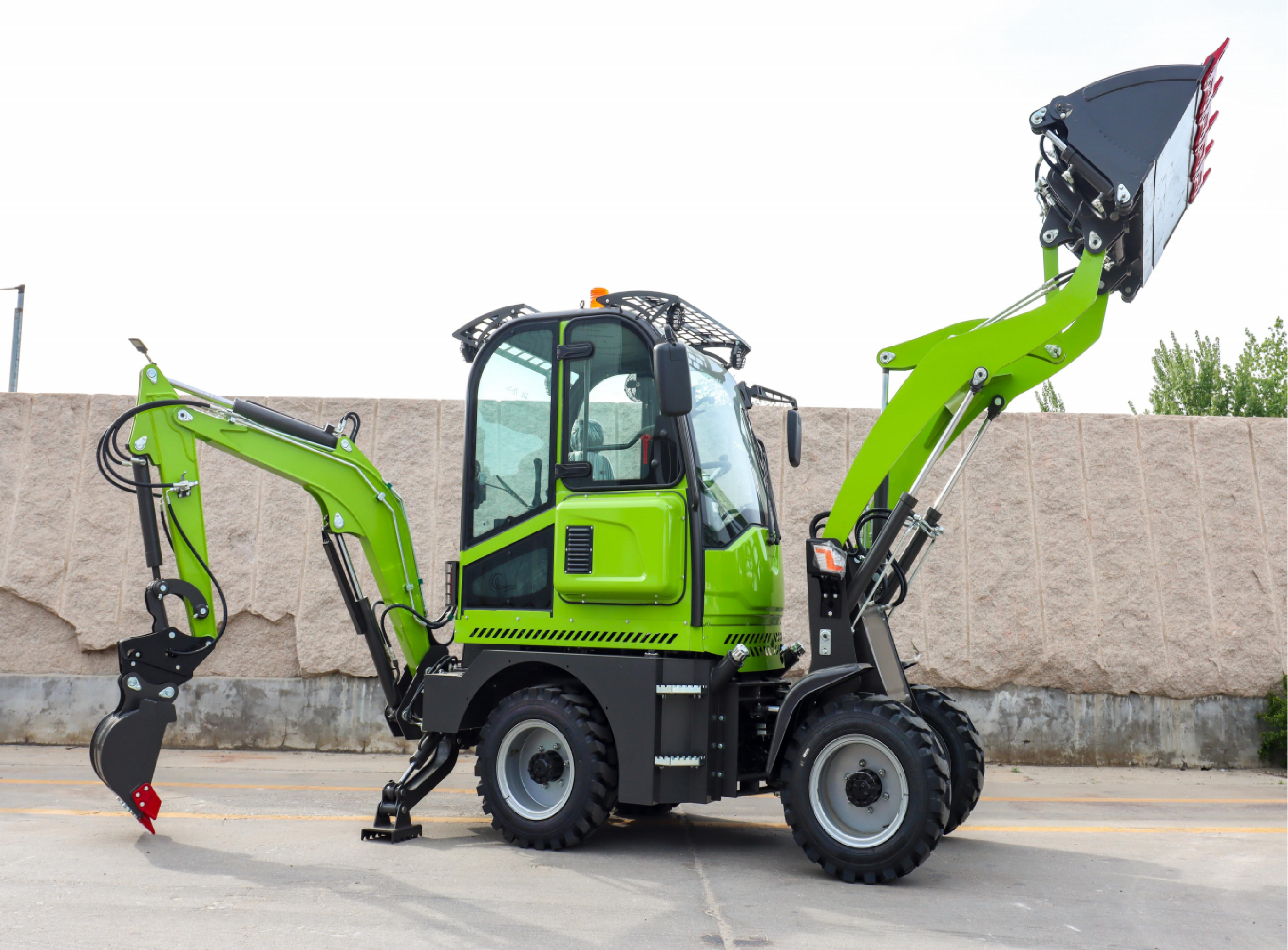

- Max Unloading Height (Loader): 2400mm | 装载端最大卸载高度：2400 毫米
- Max Digging Depth (Backhoe): 2350mm | 挖掘端最大挖掘深度：2350 毫米
- Excavator Swing Angle: 180° | 挖掘臂回转角度：180°
- Support Leg: Slant Support Leg | 支撑形式：斜支腿
- Hydraulic Circuit: Pre-installed pipeline for breaker, triple valve standard | 液压配置：预留破碎锤管路，标配三联阀

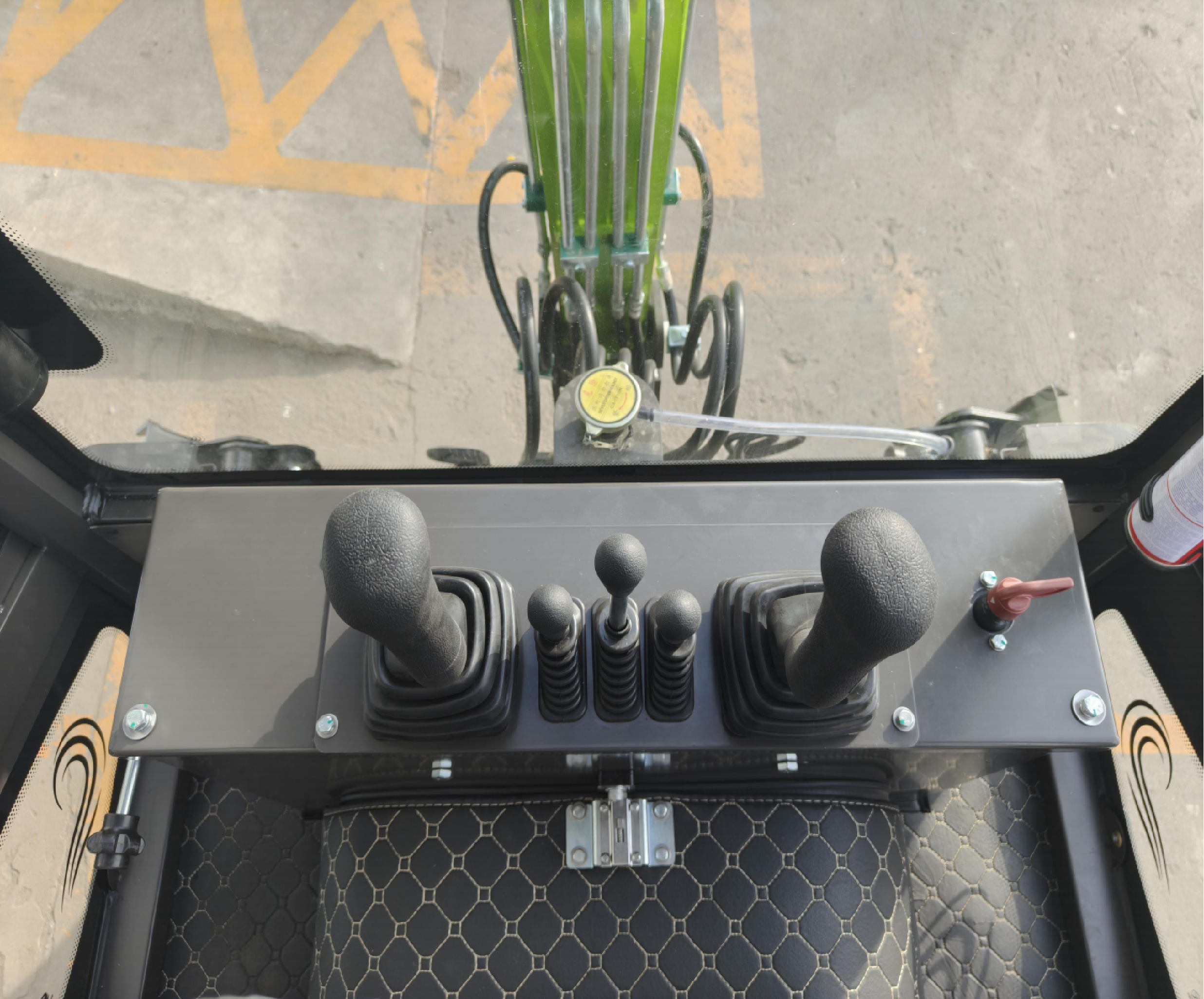

- Control Mode: Mechanical Control | 操纵方式：机械操纵
Power & Chassis Configuration 动力与底盘配置
- Engine Model: Yunnei 490 (Stage II) | 发动机型号：国二云内 490
- Rated Power: 37kW | 额定功率：37 千瓦
- Transmission: 265 High-low Speed Integrated Gearbox | 变速箱：265 整体高低速变速箱
- Axle: 50 Model Axle | 车桥：50 铃桥
- Tire Specification: 12-16.5 | 轮胎规格：12-16.5
- Cab: Premium European Style Enclosed Cab, Adjustable Work Dashboard | 驾驶室：高端欧款封闭驾驶室，可调工作仪表台
二、WL20 Compact Backhoe Loader — One Machine, Infinite Productivity
Redefine compact jobsite efficiency with the WL20 integrated backhoe loader.
Front loader and rear excavator are integrated on one flexible chassis, greatly lowering your equipment investment and saving workspace.
Driven by dependable 37kW Yunnei 490 diesel engine, this unit delivers consistent lifting and digging power for landscaping, municipal maintenance, farm operation and narrow-site construction. Equipped with 265 high-low speed transmission and heavy-duty 50 axles, paired with 12-16.5 rugged tires, it performs steadily on complicated ground.
The excavator arm supports 180-degree swing with slant support legs, reaching a maximum digging depth of 2350mm. Pre-installed breaker pipeline and standard triple valve enable quick switch among various attachments.

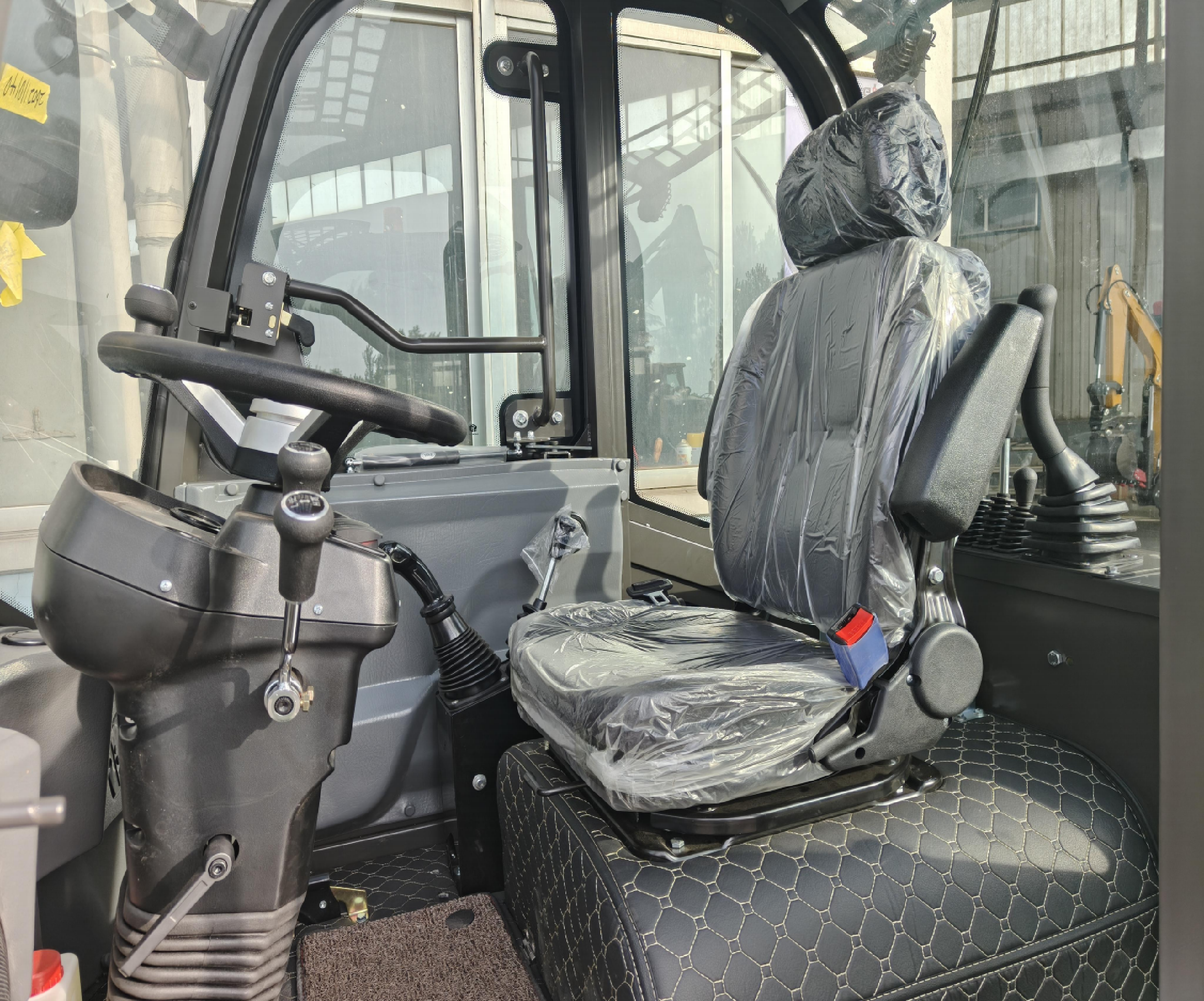

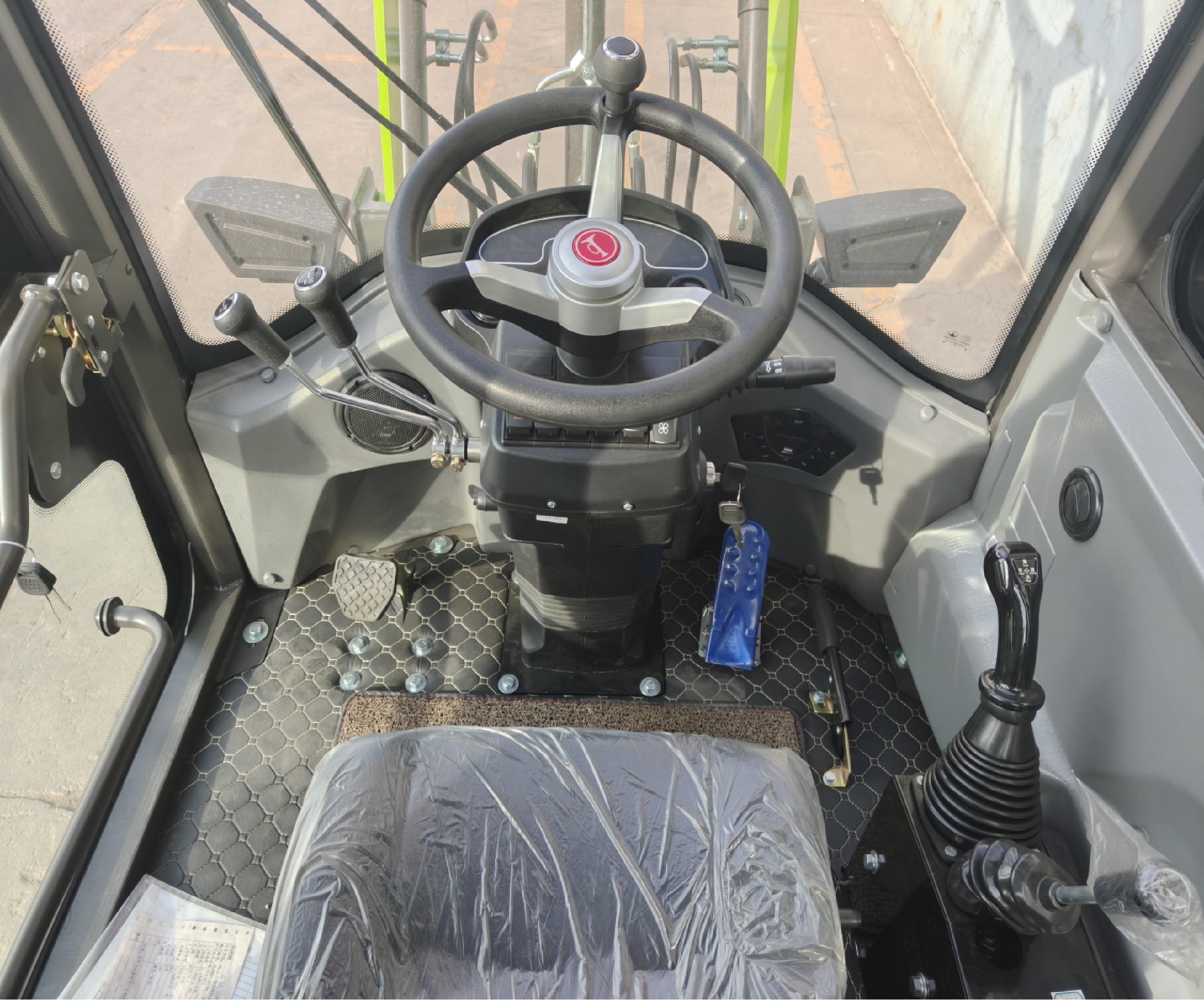

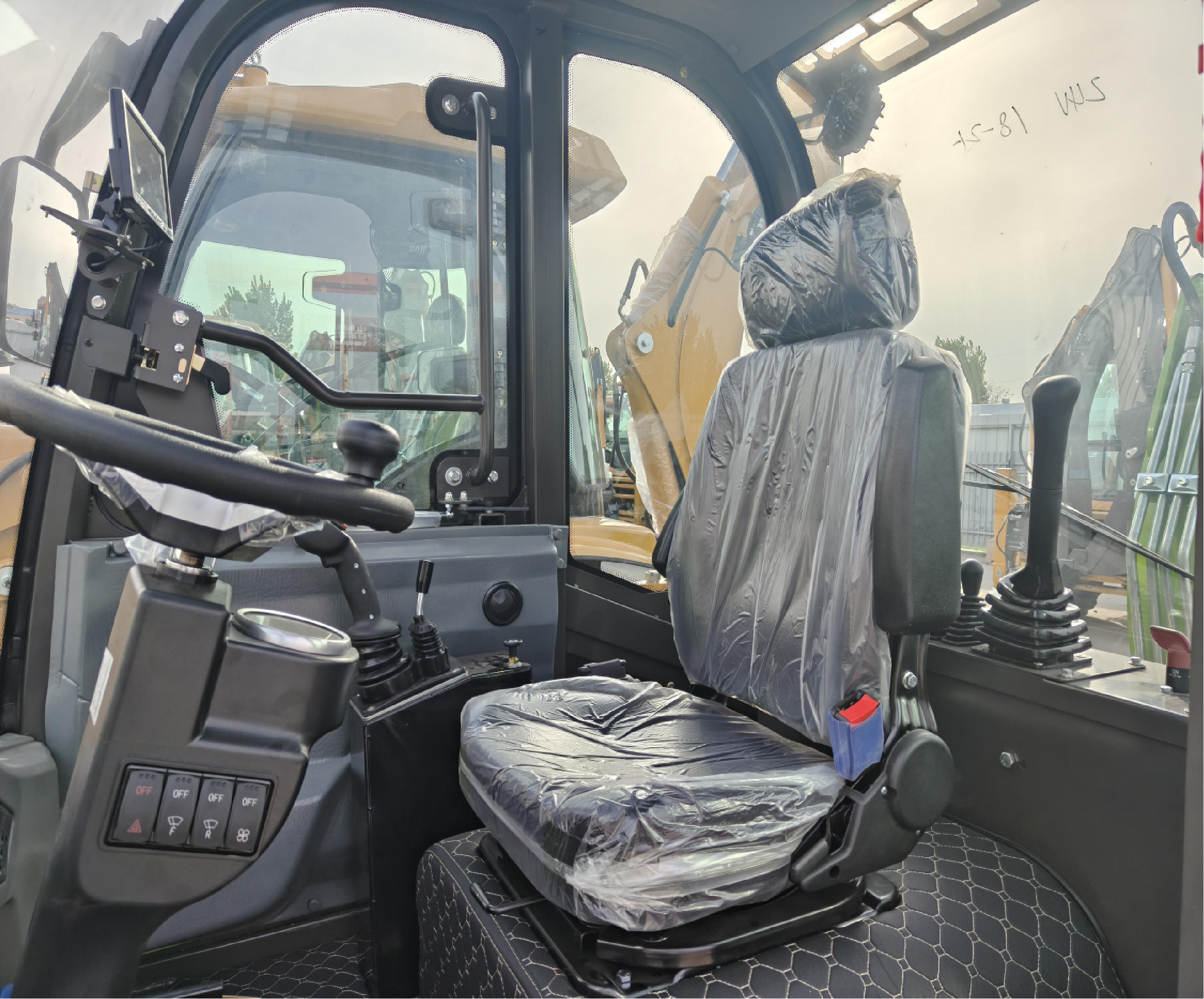

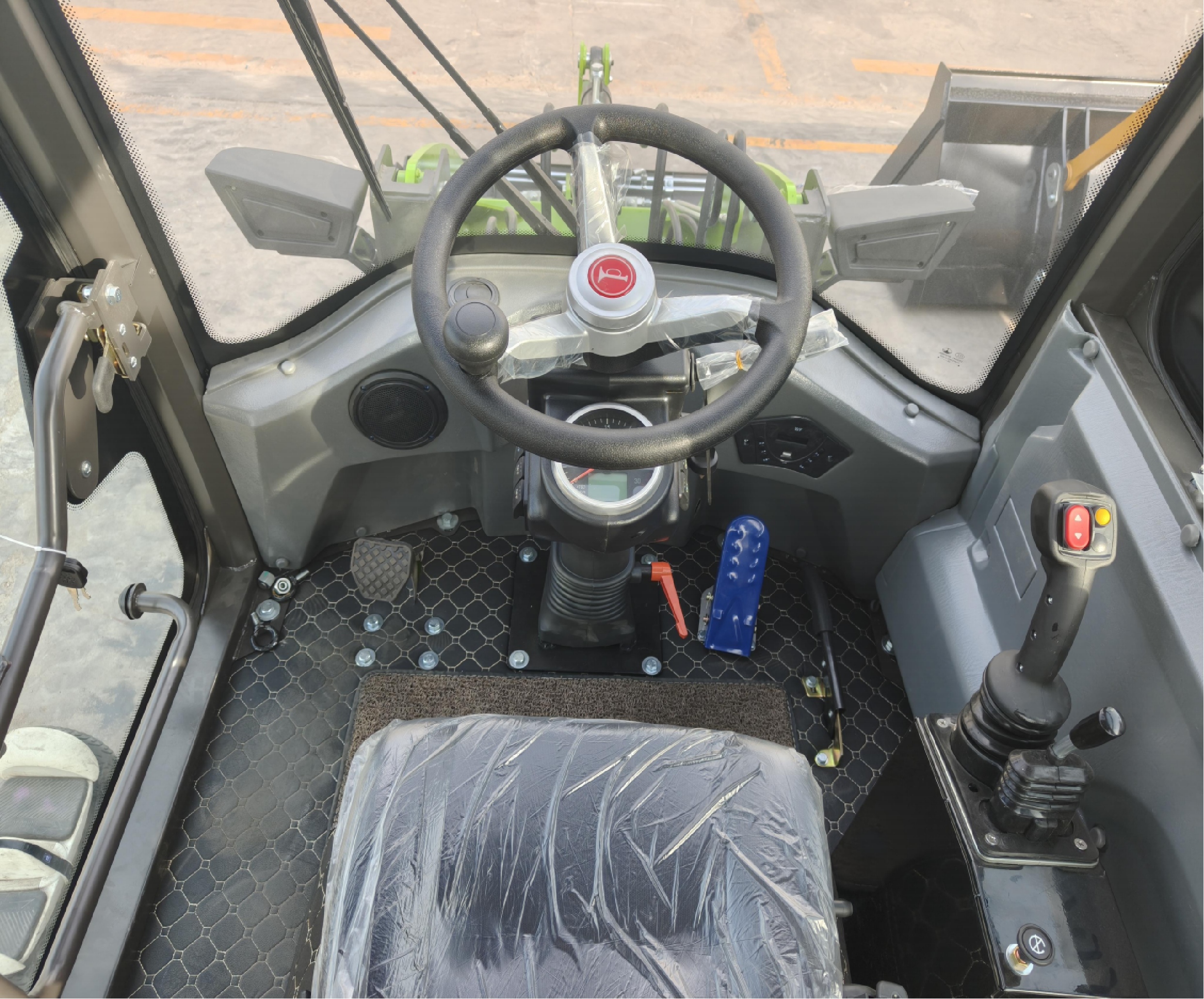

The premium European-style enclosed cab comes with panoramic vision and adjustable dashboard to ease long-hour operation. Robust structure, convenient maintenance and outstanding versatility make WL20 your reliable all-round work partner.
